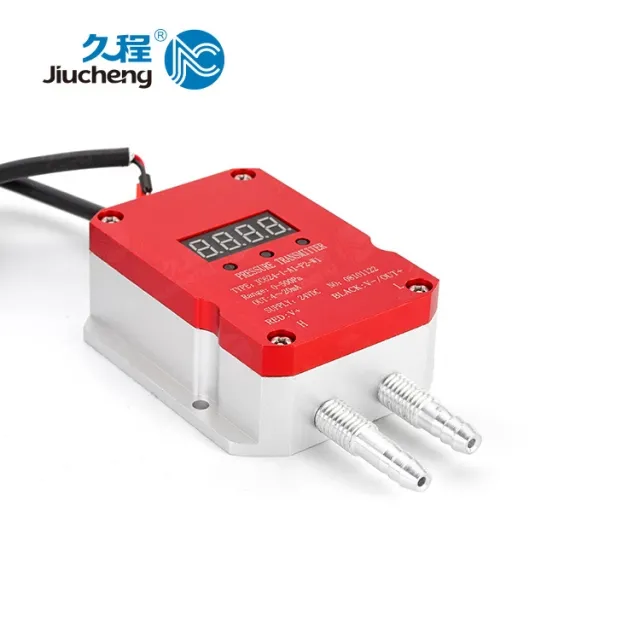

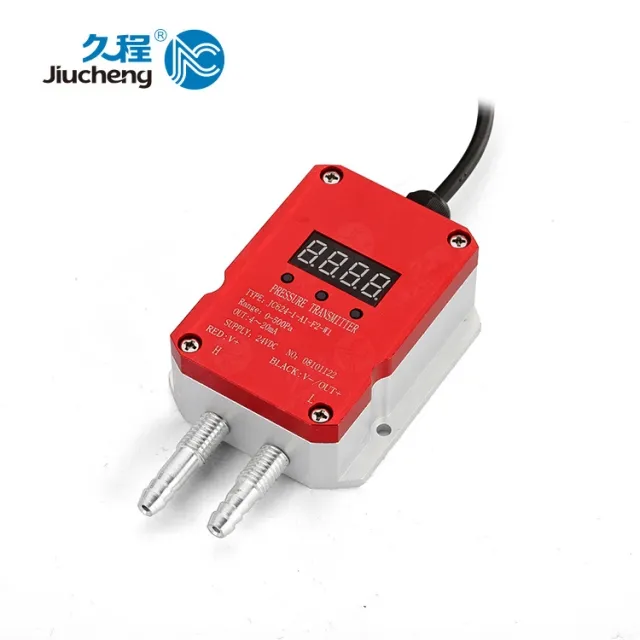

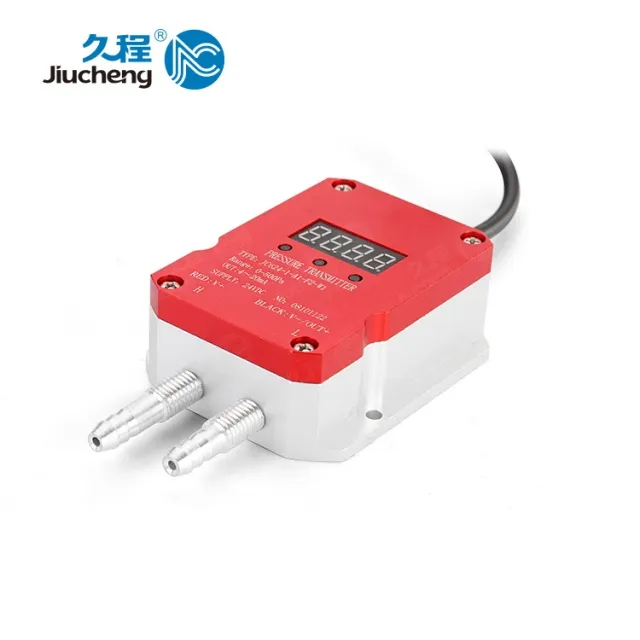

JC630 Intelligent Display Wind Pressure Transducer
Introduction
Designed with high-quality components from a foreign company, JC630 intelligent display wind pressure transducer adopts the circuit of normalized design and assembly process as well as unique sensor stress isolation technology, to convert the differential pressure signal of the measured medium into 4~20mA or 1~5V DC standard signal through temperature compensation and high-stability amplification process. High-quality sensor, circuit of normalized design, superb encapsulation technology as well as improved assembling process ensure superior quality and best performance of this product. This series product is specially designed for industrial and civil OEM customers, for which new cost performance standard has been established.
Features
* High performance cost ratio
* From 0~0.5kpa to 0~700kpa
* Continuously adjustable zero point and range
* Lightning and radio frequency immunity
* Reverse polarity protection and current-limiting protection
* Compact structure, elegant appearance, and easy Installation
* Normalized design and production guarantee stable quality and performance of the product
* The product can be designed or improved as per customers’ specific requirements
Application
* Purification equipment and cleaning engineering
* Dust control and environmental protection
* Underground ventilation monitoring
* Hearth pressure or hearth negative pressure
* Measurement of air pressure and flow rate in industrial process
* Medial instruments and equipment
* Fan measurement and control
* Normalized design and production guarantee stable
* HVAC

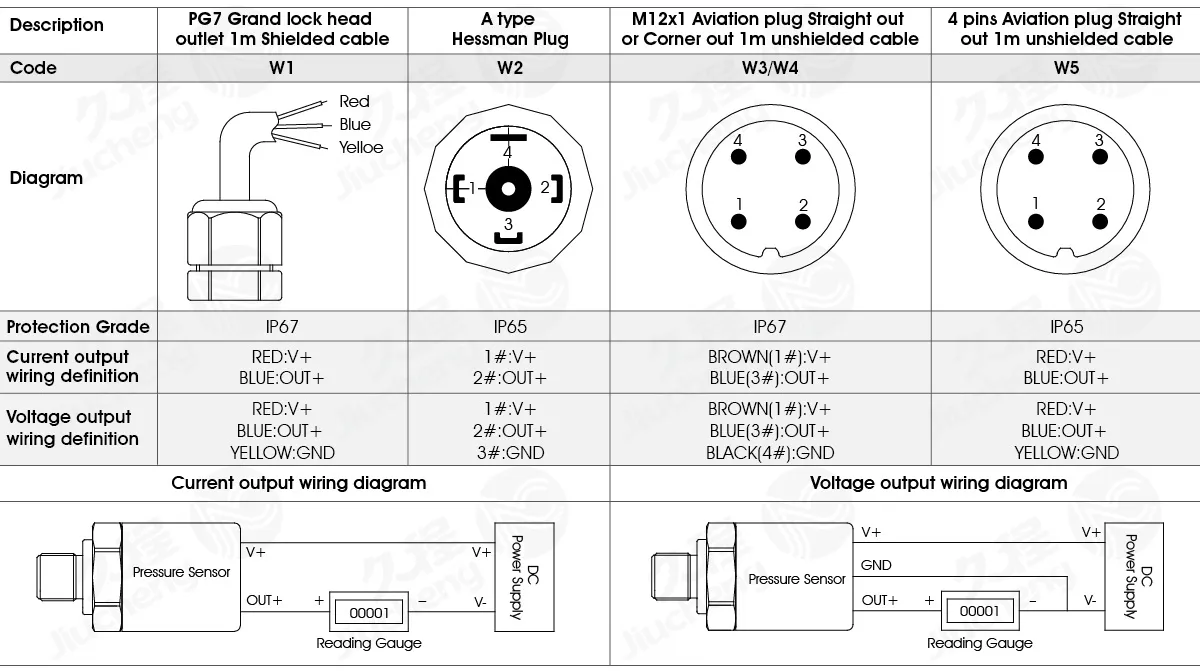

Electrical Connections

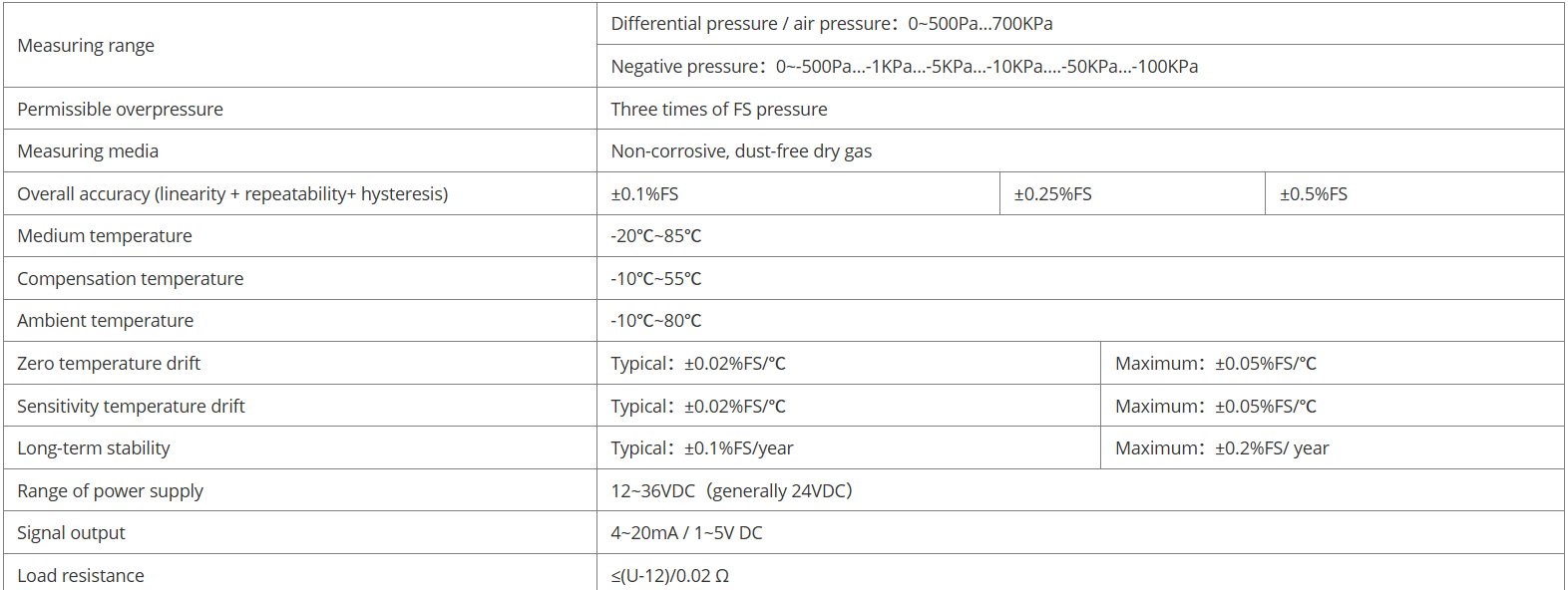

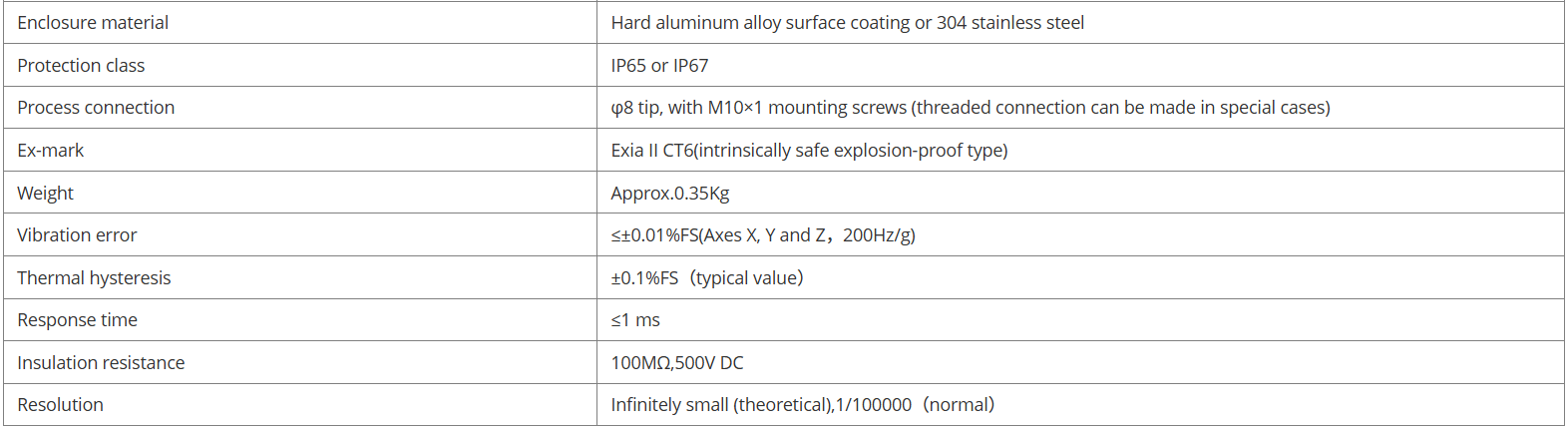

Technical Parameters

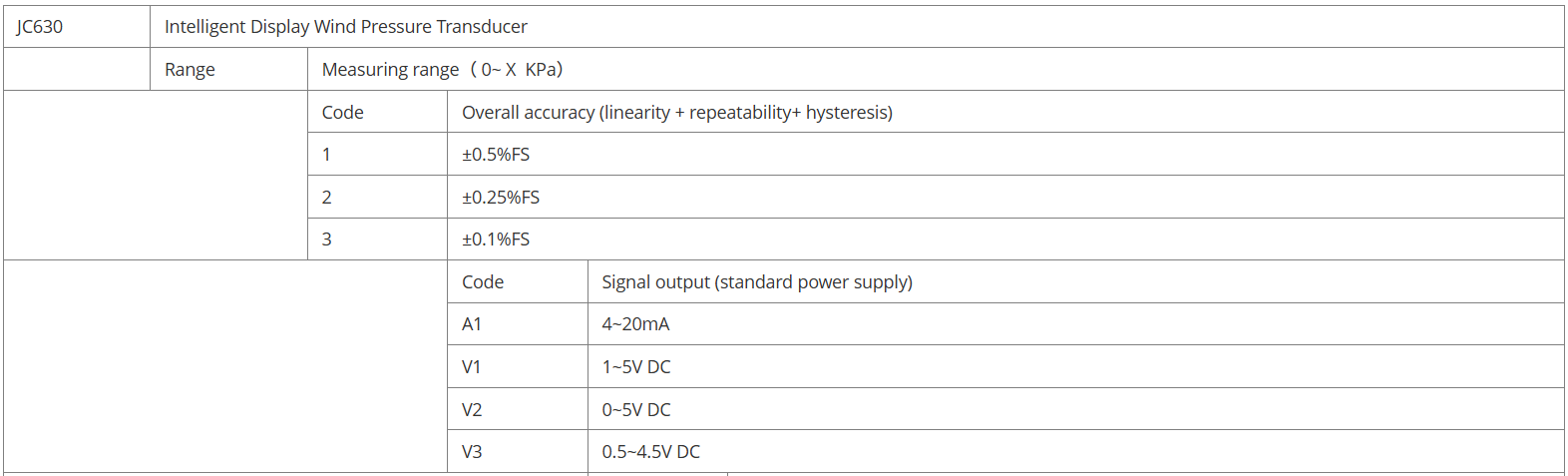

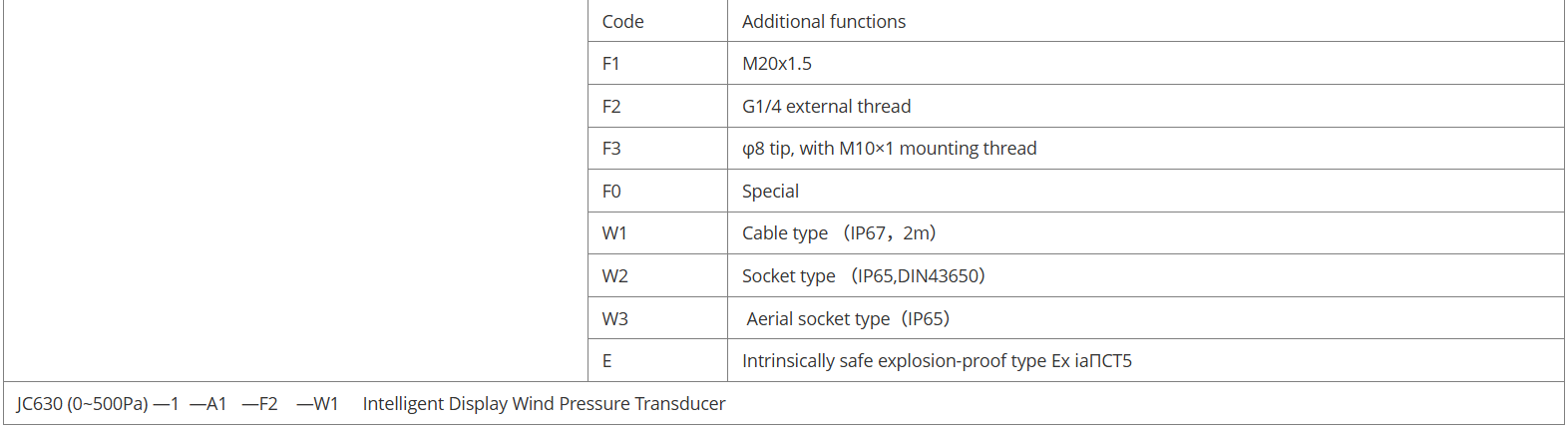

Ordering Information
Tips for Type Selection
1. If the medium to be measured contains dusty or wet gas, be sure to select supporting dust-proof dry filters for connecting lines, and remove wet dust or make a replacement on time.
2. As an additional function code for type selection, the code “E” for intrinsically safe explosion-proof type Ex iaIICT5 denotes that power source must be supplied via safety barrier
3. For other special requirements, please discuss with us and clearly indicate them in the order.
