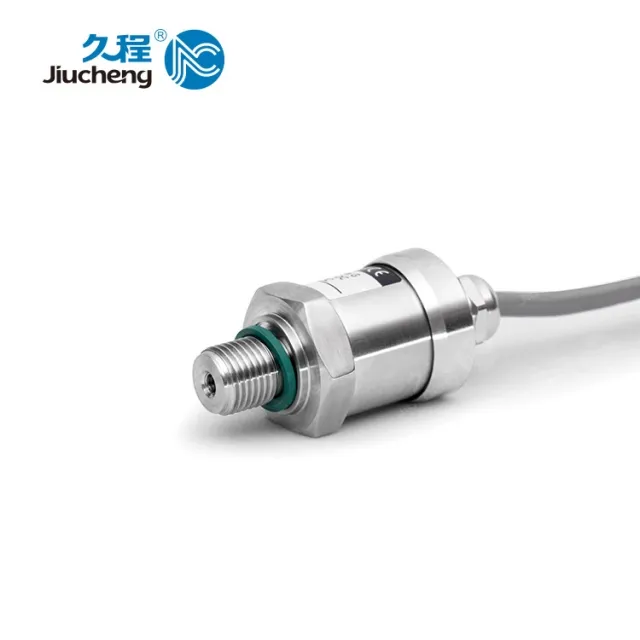

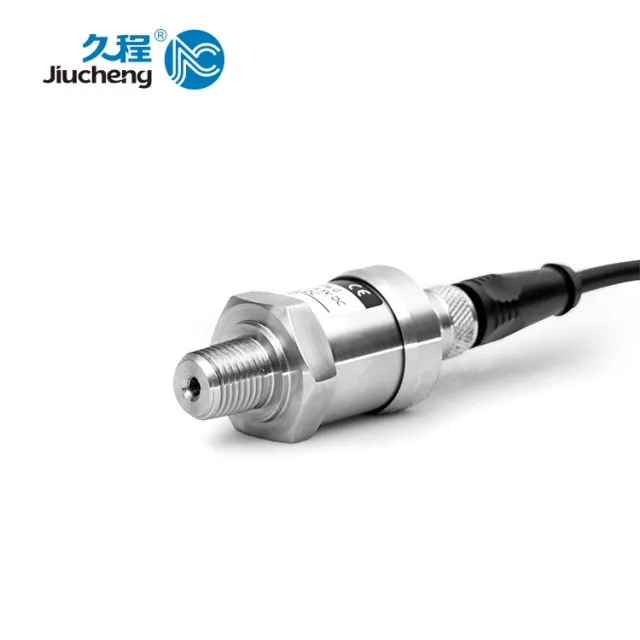

JC27 Vacuum Absolute Pressure Transmitter
Introduction
JC27 vacuum absolute pressure transmitter is an industrial measuring instrument that is modular in design and meets global OEM standards. The series is stable and reliable, and has excellent cost performance. It is rugged and durable to meet the requirements of more stringent industrial standards. It is widely used in industrial support, industry support and equipment support. The series includes a variety of options, which are applied to different industries and different working conditions. It solves the needs for economic pressure monitoring in different occasions and serves a wide range of industries.
JC27 vacuum absolute pressure transmitter adopts silicon film variable capacitor technology to solve the vacuum industry’s problems of measuring vacuum instability, sudden performance changes, signal drift, etc. The series is compact and can be used in harsh industrial environments with high cost performance.
Features
* Chemical resistant design, stainless steel anti-corrosion film
* ±0.5%FS accuracy
* High cost performance
* High quality, high yield
* Small and compact structure, suitable for a wide range
* Compliance with CE standards
Application
* Vacuum packaging, coating equipment
* Medical equipment and pharmaceuticals
* System connected to the vacuum pump
* Industrial pressure process control
* Petrochemical industry, semiconductor industry,
* Plasma welding, sterilization equipment
* Crystal furnace equipment

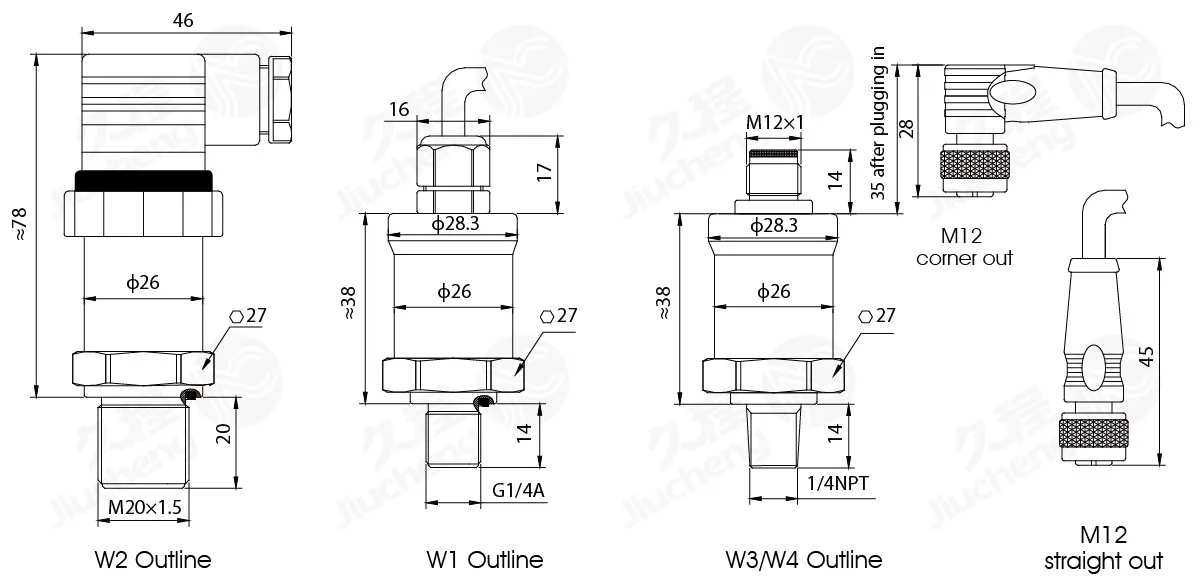

Dimensions(mm)

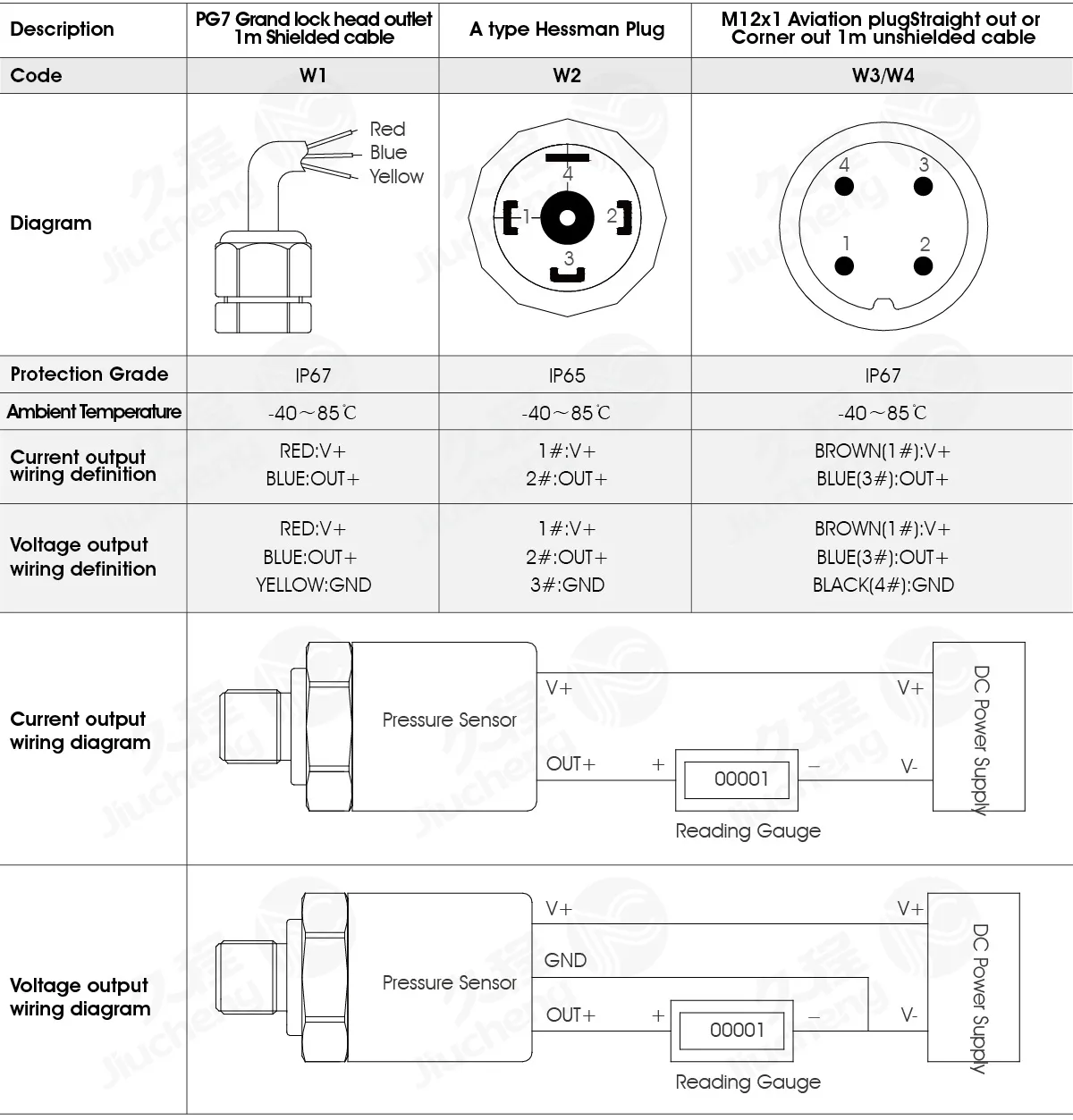

Electrical Connections
Technical Parameters

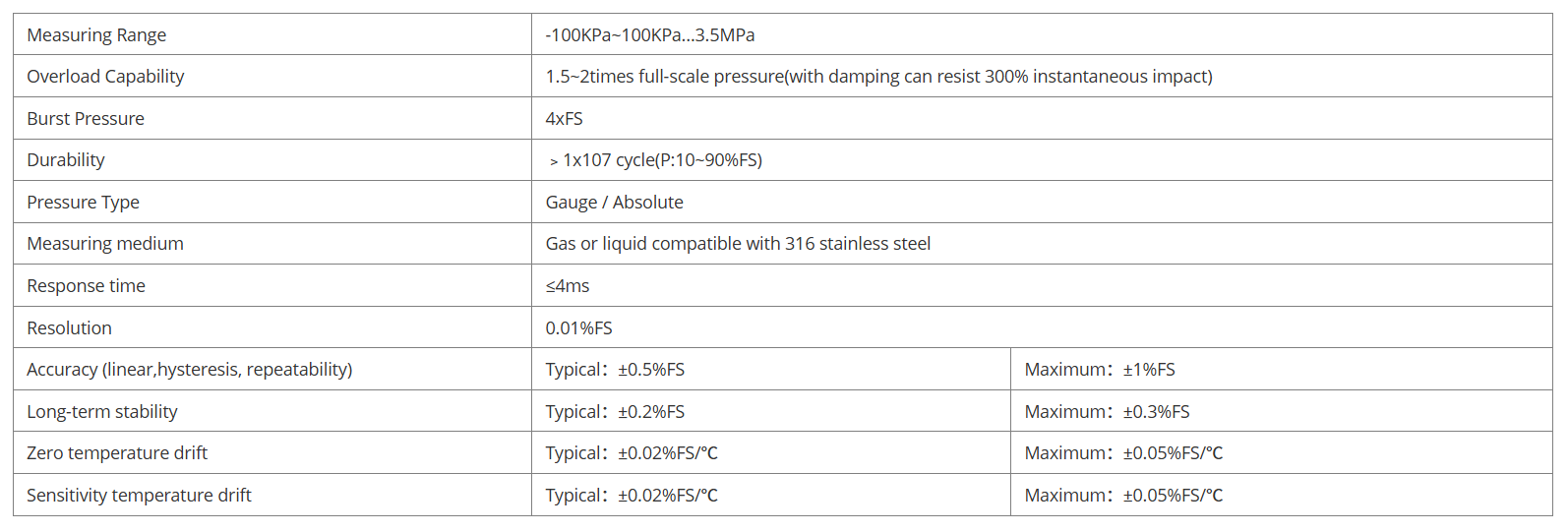

Performance Parameter

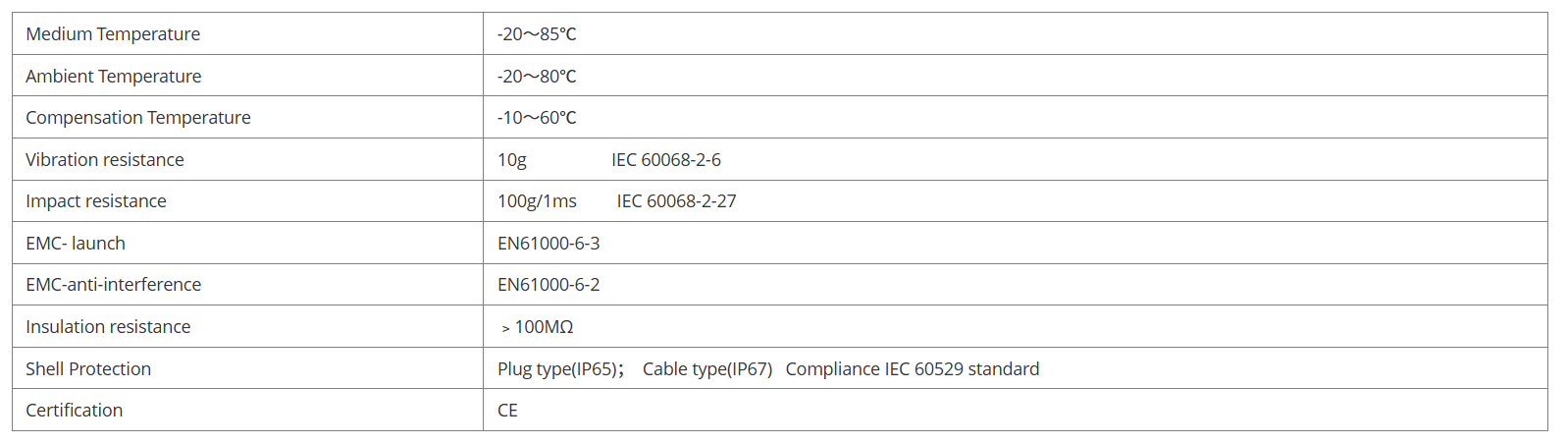

Environmental Conditions

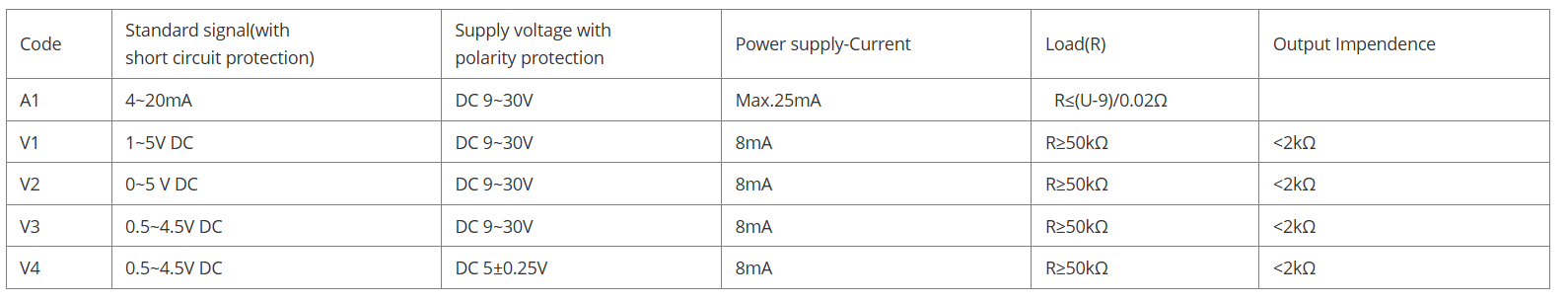

Electrical Specifications
Material

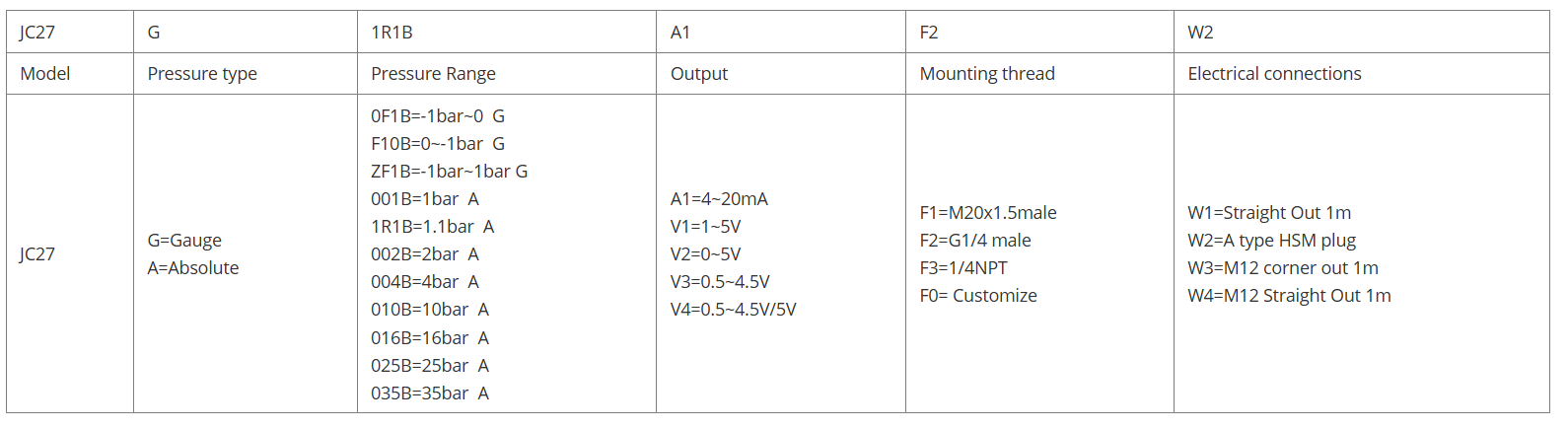

Ordering Information
Model example: JC27A1R1BA1F2W3
(JC27 Vacuum Absolute; Range 0~110KPa Absolute; Output 4~20mA; Accuracy 0.5% typical; Power Supply 9~30VDC;Pressure Connection G1/4 male thread; Electrical Connection M12 Straight Out 1m).
Remarks: It can be customized if the order quantity exceeds a certain amount. Please contact the sales engineers for details.
