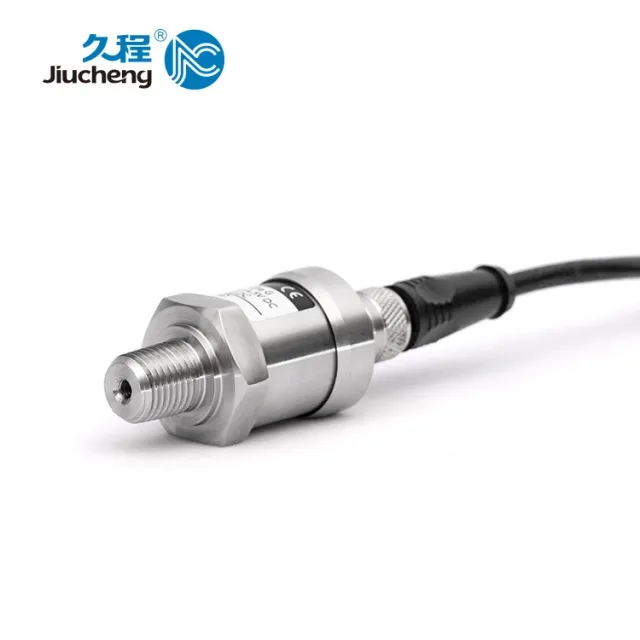

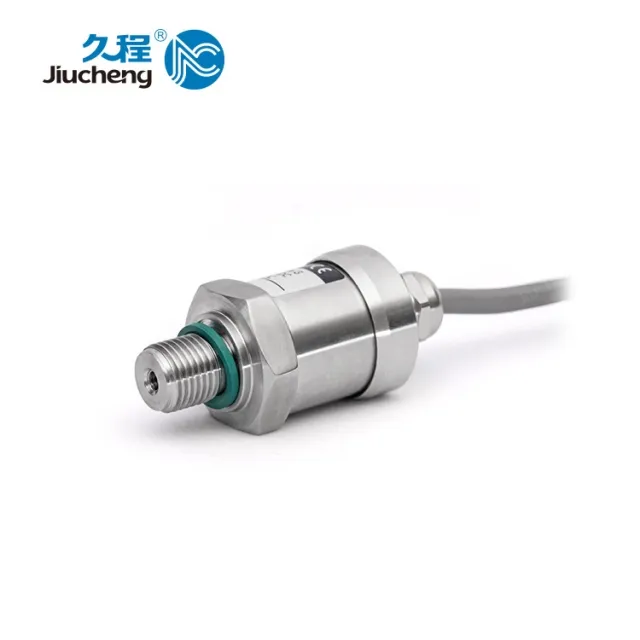

JC101 Diffusion Silicon Temperature and Pressure Integrated Sensor / Transmitter
Introduction
JC series is an industrial measuring instrument product that is designed as a modular design that complies with OEM standards. Stable and reliable quality, high cost performance, and it is rugged enough to meet more stringent industrial standard requirements. Widely used in industry supporting ,equipment supporting, different industries and different working conditions. It solves the needs of economic pressure monitoring in different occasions and serves a wide range of industries.
JC101 diffused silicon temperature and pressure integrated sensor / transmitter uses a silicon piezoresistive oil-filled core and a high-precision PT100 platinum resistor is embedded in the core base. The thermally conductive adhesive is potted in the gap between the platinum resistor and the stainless steel shell, which greatly reduces the hysteresis of temperature conduction without the platinum resistor in direct contact with the medium. Temperature and pressure are the most widely measured parameters. The integrated temperature and pressure sensor saves installation time, space and cost for many industrial occasions and equipment. The special digital integrated circuit inside the transmitter converts the millivolt signal of the sensor into standard voltage and current signals (such as 4-20mA, 0-5VDC, 0.5-4.5VDC), etc., which can be collected by the acquisition card and computer or directly with the control instrument, Smart meters, PLCs, etc. are connected; I2C digital signals, only need battery DC 3.3 ~ 5V power supply, low power consumption can meet the low power pressure measurement of various wireless meters. This series has the characteristics of small size, light weight, easy and simple installation, etc., all stainless steel sealed structure, can work in corrosive environments, and has very good vibration and shock resistance.
Features
* Built-in PT100 temperature sensor
* Measuring range: 0 ~ 40KPa …… 70bar
* 0.5% FS (typical) accuracy of industry standard
* Diffuse silicon sensitive , strong anti-interference, good long-term stability
* Adopt international standard anti-damping design, can resist 300% instant impact
* Compact structure, integrated temperature and pressure, stable and reliable quality, high cost performance
* 316L stainless steel isolation corrugated diaphragm can measure gas, liquid, gas-liquid mixture and other fluid
* Various industrial signal output 4 ~ 20mA, DC 0 ~ 5V, DC 1 ~ 5V , DC 0.5 ~ 4.5V, I2C and PT100
Application
* Hydraulic and pneumatic fields
* Measurement and control technology
* Machinery manufacturing, equipment matching, pumps and compressors
* Temperature and pressure measurement of gas and liquid in various fields
* Liquid level, volume or mass measurement and temperature measurement
* Can be integrated into various user-defined temperature and pressure integrated solutions
* Smart water, smart gas, smart fire, air-conditioning and refrigeration, automotive electronics

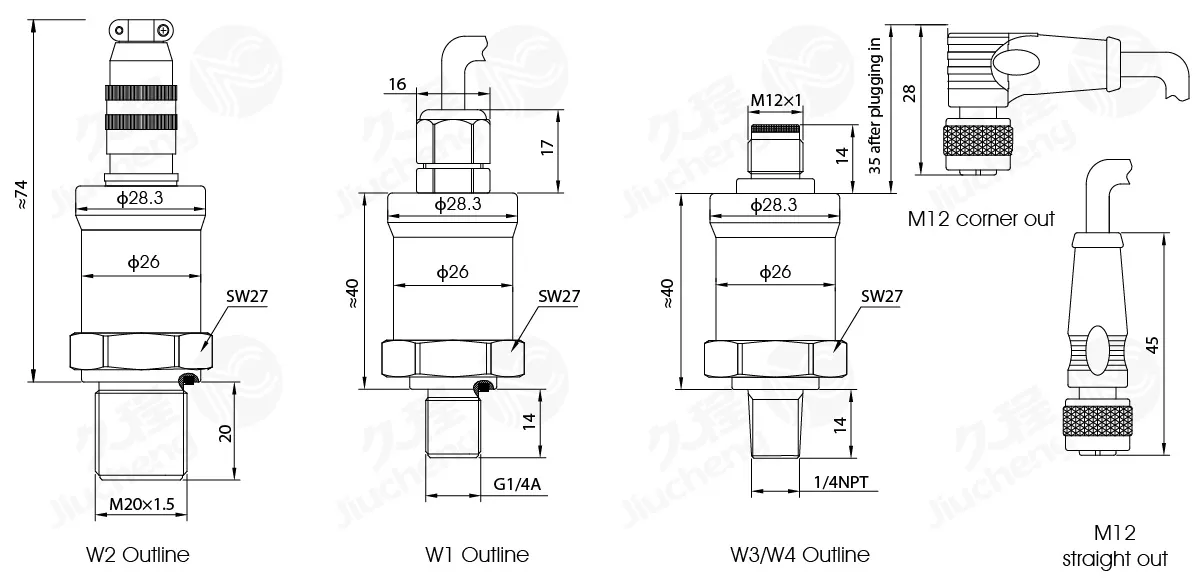

Dimensions(mm)

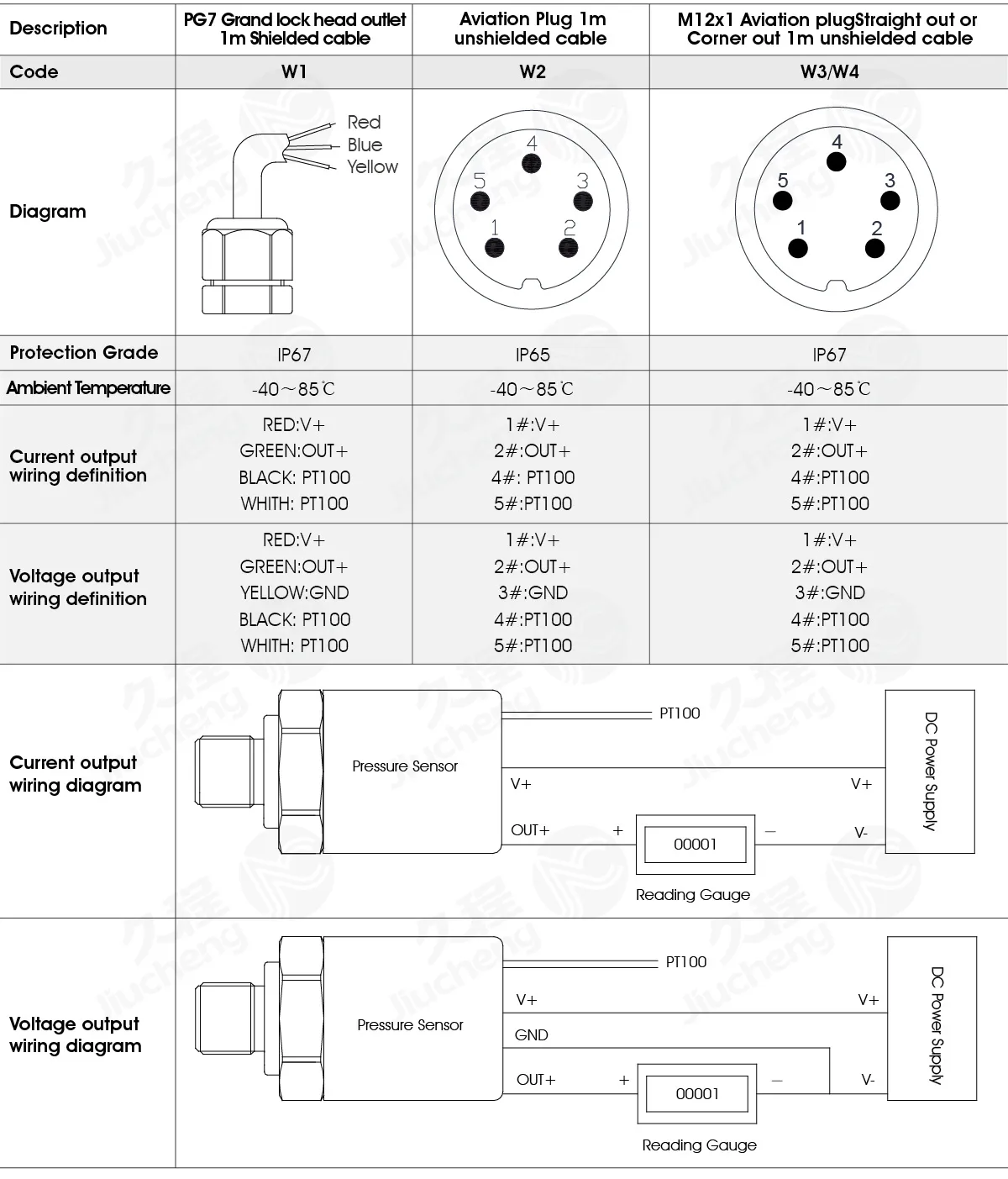

Electrical Connections
Technical Parameters

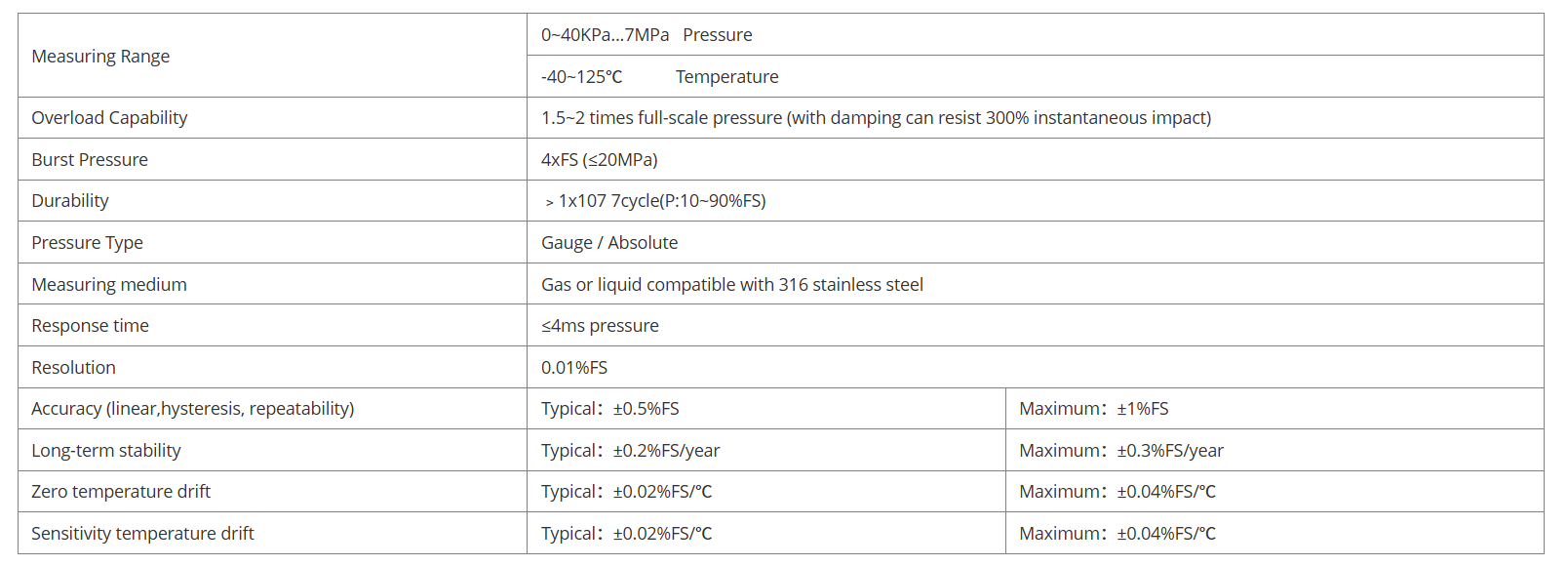

Performance Parameter

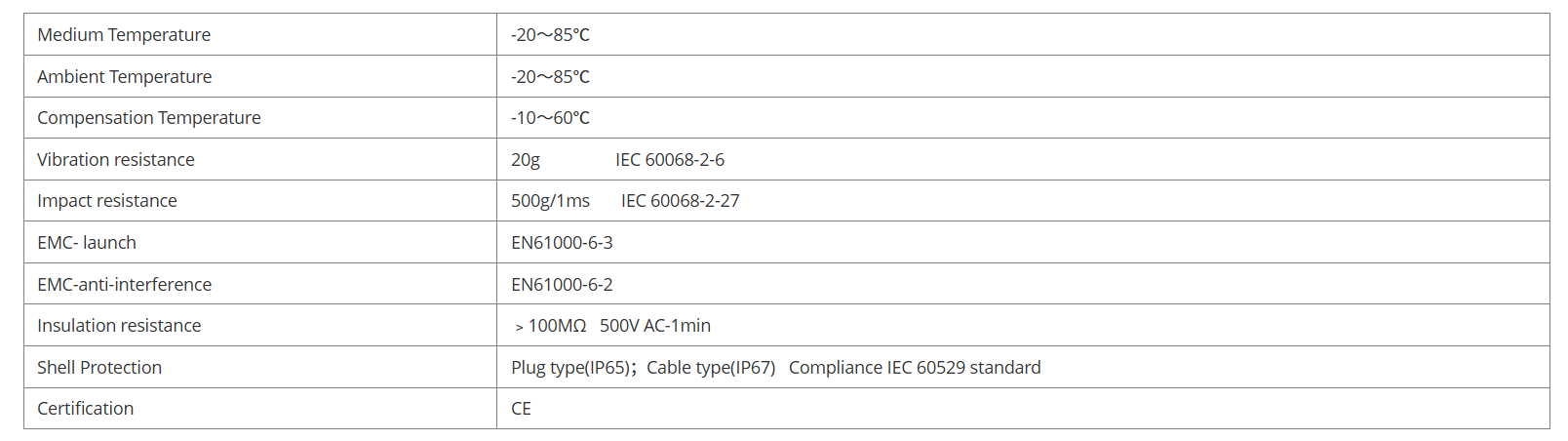

Environmental Conditions

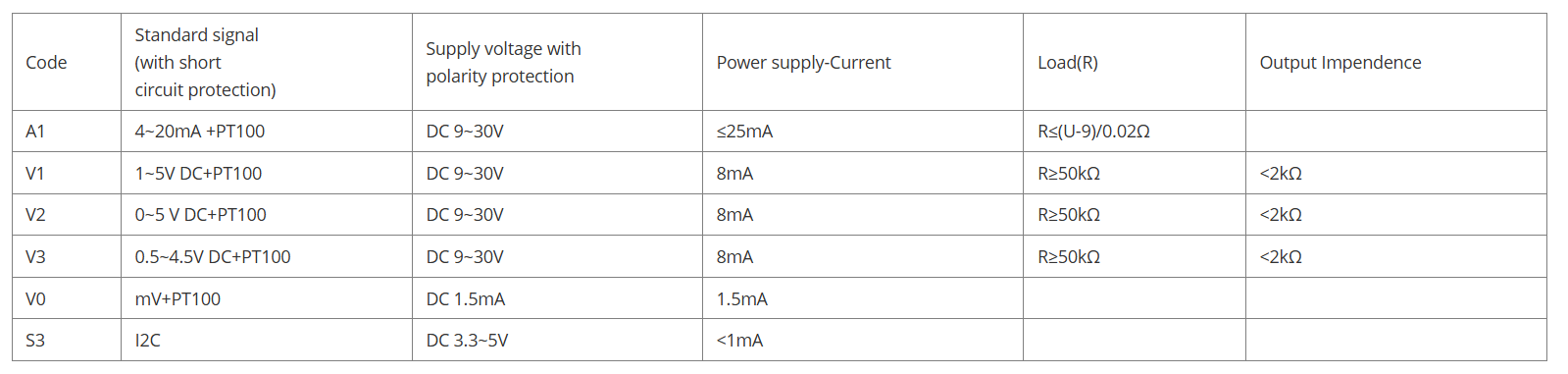

Electrical Specifications

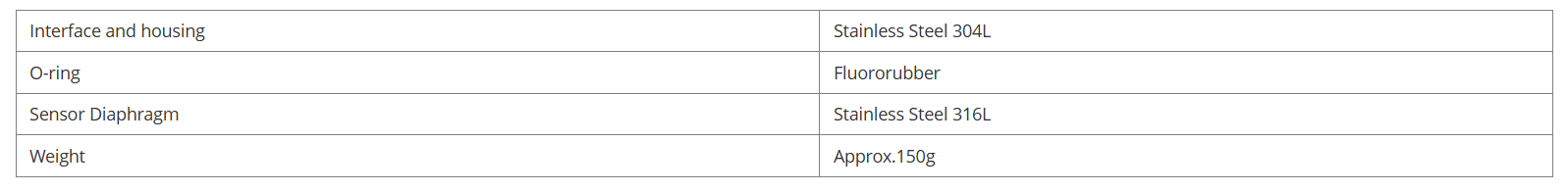

Material

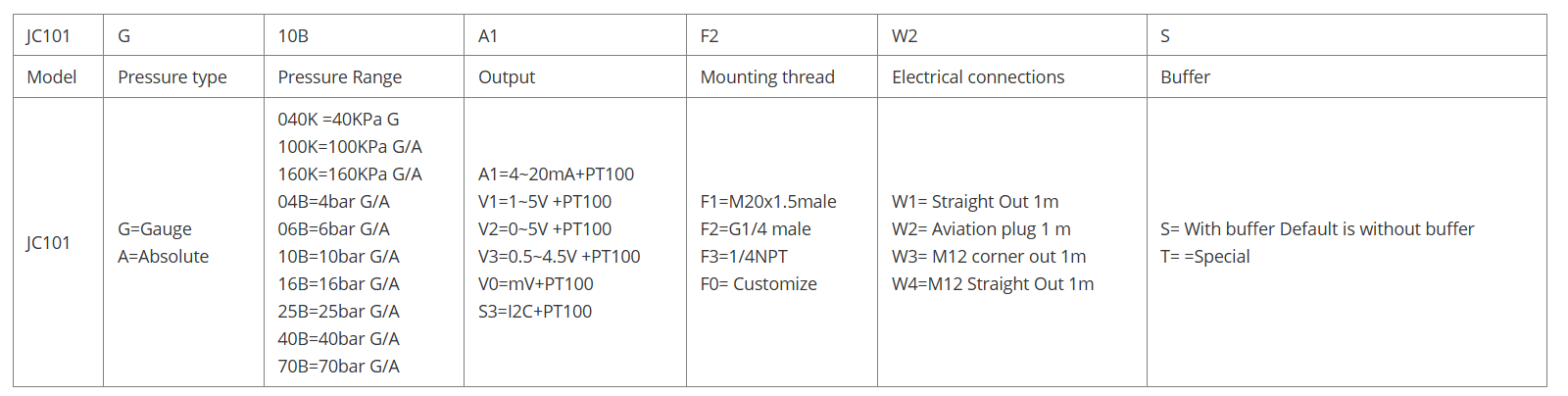

Ordering Information
Model example: JC101G10BA1F2W1S
(JC101 Diffusion Silicon Temperature and Pressure Integrated Sensor/Transmitter；Range：0-1MPa Gauge；Output：4-20mA+PT100；Accuracy： 0.5%FS typical；Power Supply：9~30V DC, ;Pressure Connection：G1/4 male；Electrical Connection：straight out ；with buffer，,Special instruction：010B=10bar G/A, G/A stands for gauge and absolute pressure, G gauge, A absolute)
Remarks: It can be customized if the order quantity exceeds a certain amount. Please contact the sales engineers for details.
