JC-CT03 Micro Pressure / Differential Pressure Sensor
Introduction
JC-CT03 micro-pressure and differential pressure sensor is a temperature-compensated silicon pressure sensor with a dual in-line package structure for applications requiring low cost, superior performance and long-term stability. Temperature compensation from 0 to 50 °C is achieved by laser-etched resistors. Gauge and differential pressure options are available.
Features
* Dual-in-Line Package
* ±0.3% Non-linearity
* Gauge and differential pressure
* Solid Structure, reliable performance
* 0～50℃ temperature compensated
Application
* Industrial automation control
* Medical Instruments
* Process Control
* Leak Detection
Dimensions(mm)

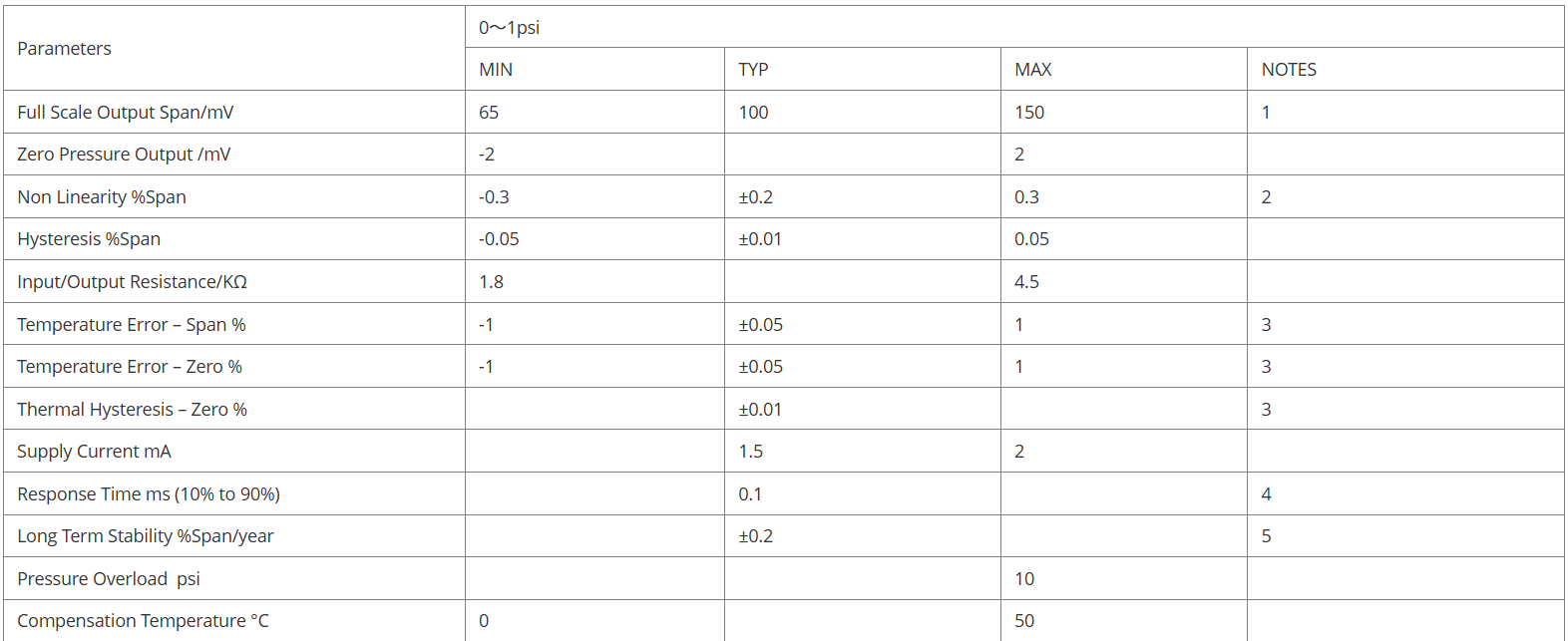

Technical Parameters
Remark:
1. Output span of unamplified sensor.
2. Best fit straight line.
3. Temperature range: 0°C to 50°C with reference to 25°C.
4. Gradually change from zero to full scale pressure.
5. Long-term stability within one year under normal power supply and normal temperature.
Ordering Information
Note:
1. Electrical connection is a "soft wire" product, the wire length can be customized according to customer requirements.
2. Can be used for down-range, and the amplitude is controlled within ±50%FS.
3. Protect the isolation diaphragm at the front end of the pressure sensitive component to prevent the impact of the pressure sensitive component from damaging the sensitive component.
4. The maximum pressure of the system should be less than the overload protection limit of the sensor, otherwise it will affect the service life of the product and damage the product.
5. The commonly used compensation method for the product is 1.5mA constant current compensation. It is recommended to give priority.
6. Do not force or pull the pins of sensitive components.
7. If you have special requirements on product performance parameters and functions, please contact us.
